Item:

External compressed air purifier for CO2 free air for TOC analyzers

Description

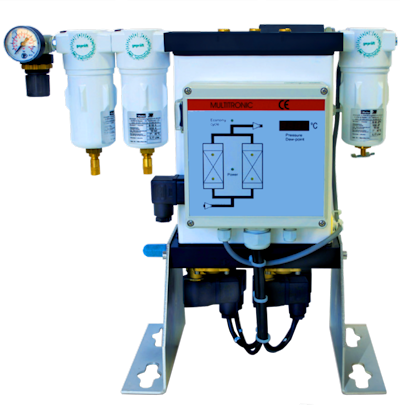

The external air purifier is an optional accessory for TOC and TC analyzers. It is required in applications where the final user has already an instrumental air supply and wants to use it in combination with a 3S analyzer. The purifier takes an inlet stream of air and outputs a CO2-free very clean stream of compressed air. This item replaces the internal CO2 removal section of the TOC analyzer, constituted by the compressors and the sodalime filter and gives excellent performances even with low range analysis. The generator can be operated with external compressed air in the range of 4 bar to max. 10.5 bar.

Inlet Temperature +5 - +30 °C (41 - 86 °F)
CO2 outlet concentration < 1 ppm
Residual hydrocarbons < 0.003 ppm
Output Dew Point -70 °C
Operating pressure 4 -10.5 bar

External compressed air purifier for CO<sub>2</sub> free air for TOC analyzers

Product code

  • A46CO2P000 - External compressed air purifier for CO2 free air for TOC analyzers

Documentation
