Chlorophyll
Chlorophyll
Applications
- Determination of chlorophyll in water as a method to estimate and monitor the total concentration of algae in rivers, lakes, ponds, sea water, marine surveys, aquaculture, drinking water sources and other fields of algae and phytoplankton monitoring.
Description

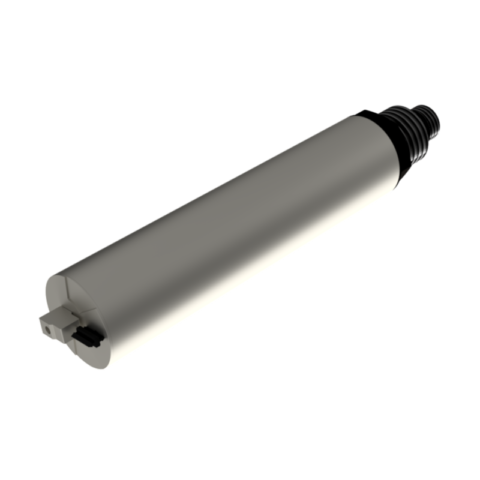

Online probe for the determination of chlorophyll in water.
Method
The method is based on the spectroscopic determination of chlorophyll through the measurement of the fluorescence at a specific wavelength.
Features
| Measured parameter | Chlorophyll | ||
|
Range
|
|||
| Demineralized water | Not required |
Reagents and standards
- No reagents required.
- See standard solutions for Chlorophyll analyzer.
Technical Specifications
| Model | 3S-CHL |
| Sampling Mode | Continuous. |
| Sample | Pressure: max 3 bar Temperature: 0 ‐ 50°C (32‐ 122°F) |
| Drain |
Pressure-free drain Connection: 12 mm (½-in.) |
| Input Streams | 2 |
| Material | Titanium |
| Dimensions (H x W x D) | 198 x 36 x 36 mm (7.7 x 1.4 x 1.4 in) |
| Weight | 1 kg (2 lbs) |
| Power Supply |
Input Voltage: 12 - 24 VDC Power consumption: max. 1 W |
| Output signals |
2 x 4-20 mA analog outputs Modbus via RS485 |
| Alarms | 2 SPDT programmable voltage-free relays |
| Digital Input | None |
| Ambient Temperature | 0 - 50 °C (32 - 122 °F) |
| Ambient Humidity | 100 % RH |
| Protection Grade | IP68 |
